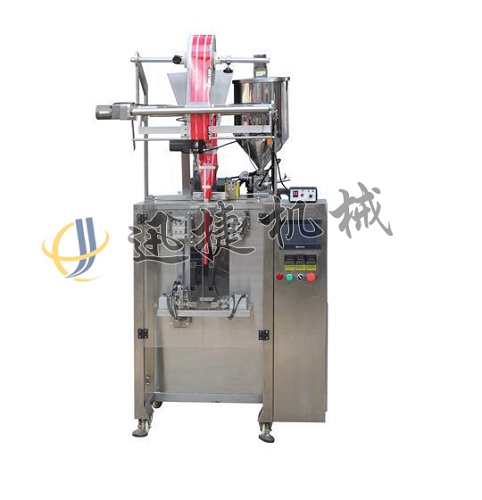

自動三邊封氣動粉劑包裝機

產品說明
用途Application
適合各種液體包裝如洗潔精、洗發水、牙膏、調味品、蜂蜜或油類等及粉劑包裝如奶粉、豆奶粉、麥片、爽身粉、醫藥或農藥粉劑或無粘性細小顆粒物料等。
For packing all kinds of liquid and powder like detergent ,shampoo ,toothpaste ,sauce ,honey ,oil , milk powder ,bean powder ,cornmeal ,talcum powder ,medical or farm powder or non-viscous small granules etc.

功 能Function
光電跟蹤及無極調速于一體，可周期完成下料、計量、日期打印、制袋、充填、封合、熱壓批號、分切計數等作業。
Equipped with photoelectric automatic tracking and stepless speed regulations that can repeatedly complete in-feeding ,weight-checking ,date-printing ,bag-forming ,filling ,sealing ,batch-pressing ,cutting &counting etc.

技術參數Technical Parameter
袋形Bag Type：三邊封Three Side Sealing
封口形式：熱封Hot Sealing
制袋尺寸Bag Making Range：長Length 50-200mm ; 寬Width 20-140mm
包裝速度Packing Speed：40-60bags/min
計量范圍Filling Range：10-200g
大包裝膜寬Film Max. Width;320mm
計量方式Weight-Checker；螺桿及計量泵Both Screw and Pump
打碼機Date Printer ：可選As Required
驅動方式：氣動驅動Pneumatic
總功率Power：1.2Kw
電源Power Supply： 220V/50Hz-60Hz
機重Weight ：280Kgs
外形尺寸Dimension：700x900x1750mm

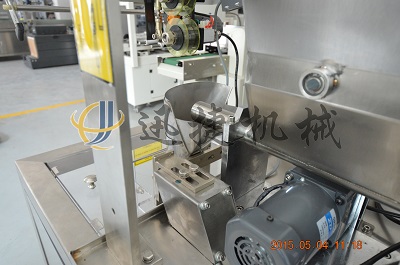

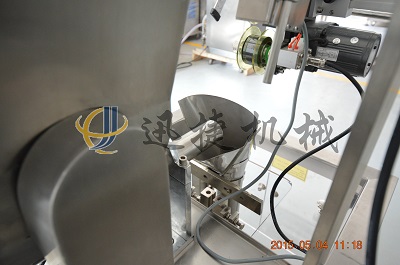

產品細節
